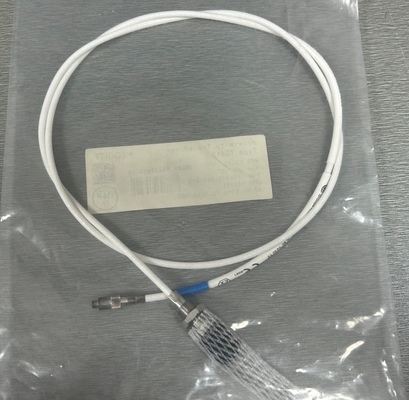

TQ412 111-412-000-013 A1-B6-E050-F2-G050-H05 Proximity Measuring System

TQ412 111-412-000-013 A1-B6-E050-F2-G050-H05 Proximity Measuring System

Features:

• Non-contact measurement system based on eddy-current principle

• Ex certified versions for use in hazardous areas (potentially explosive atmospheres)

• Conforms to API 670 recommendations

• 1, 5 and 10 m systems

• Temperature-compensated design

• Voltage or current output with protection against short circuits

• Frequency response: DC to 20 kHz (−3 dB)

• Measurement range: 2 or 4 mm

• Temperature range: −40 to +180 °C

Description:

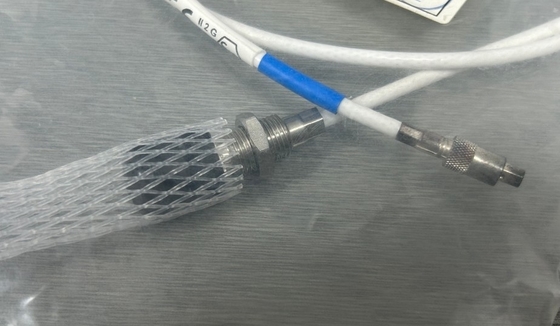

The transducer body is available with metric or imperial thread. The TQ412 version is intended for reverse-mount applications. Both the TQ402 and TQ412 have an integral coaxial cable, terminated with a self-locking miniature coaxial connector. Various cable lengths (integral and extension) can be ordered.

The transducer body is available with metric or imperial thread. The TQ 412 version is intended for reverse-mount applications. The TQ 402 / 412 has an integral coaxial cable, terminated with a self-locking miniature coaxial connector. Various cable lengths (integral and extension) can be ordered.

The system is based around a TQ402 or TQ412 non-contact sensor and an IQS900 signal conditioner. Together, these form a calibrated proximity measurement system in which each component is interchangeable. The system outputs a voltage or a current proportional to the distance between the transducer tip and the target, such as a machine shaft.
